Modular design

MEGA Pendants


Electric or manual arms


3D configurations

MEGA for ICU & Other Rooms

Excellence in customization

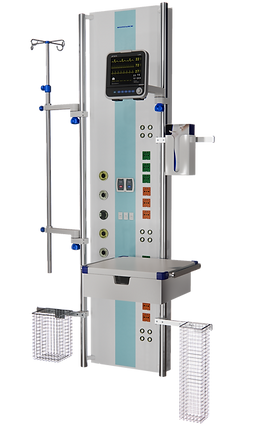

With the new "modularity design", MEGA can be 360° customized to meet different customer uses in even severe space for all medical applications, in the environment such as OR, ICU, NICU and Emergency room. The variety of service head while maximizing the space utilization, can individually accepts electricity, data or medical gas panels. Yet more to this, the panel can be positioned to the front right or left, mid front, back right or left, or mid at the back. This unique feature gives the customer more freedom to plan or design their own OR and other healthcare environment, but not only confine to what the manufacturers make.

Standard configuration:

Dry side

Service head: 6 sided with 3 levels

Gas Outlet: O2 x 2, VAC x2, MA4x2                                            Electricity:  6xmain sockets, 6xequipotential pins

Low voltage: 2 x RJ45

Platform: 1 x height adjustable platform with drawer



Wet side

Service head: 4 sided with 3 levels

Infusion: 2 x double swiveling arms  with infusion IV pole w/4 hooks

Platforms: 1x height adjustable platform



Options:

● Single/double arm holder for patient monitor

● Computer rack

● Single /double arm  holder for monitor

● Wire baskets, infusion IV pole w/4 hooks

● Keyboard drawer

● Other accessories

MEGA M1/M2 ICU Tandem Pendants

MEGA M Fixed Column  Pendant

Standard configuration:

Service head: 4 sided with 4 levels

Gas Outlet: O2 x 2, VAC x 2, MA4 x 2

Electricity: 12 x main sockets

Platform: 1 x height adjustable platform

Accessories:

● 1 x Double Drawers

● 2 x Wire baskets

● 2 x  Monitor carriers

● 2 x Medi rail

Options:

● Cable management accessories

● Other accessories

MEGA W Service Panel

Standard configuration:

Service panel: 1500mm, 3 tiers

Gas Outlet: O2 x 2, VAC x 2, MA4 x 2

Electricity: 12 x main sockets

Platform: 1 x height adjustable platform

Options:

● Monitor carrier

● Drawers

● Wire baskets

● Medi rail & cable management accessories

● Other accessories

MEGA W Service Panel

Standard configuration:

Length: 1200mm (up to 5000mm)

Height: 1 tier, max. of 3 tiers

Gas Outlet: O2 x 1, VAC x 1, MA4 x 1

Electricity: 12 x main sockets

Platform: 1 x slidable platform

Options:

● Monitor carrier

● Infusion rods

● Drawers

● Wire baskets

● Medi rail & cable management accessories

● Other accessories
